All-Round Vision Camera A167*6B Connector End View

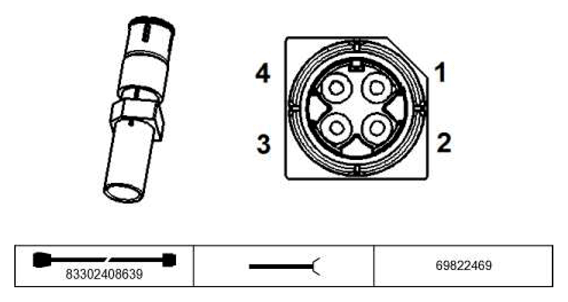

Fig 1: All-Round Vision Camera A167*6B Connector End View

Courtesy of BMW OF NORTH AMERICA, INC.

Pin Assignments At Plug Connector A167*6B

Pin	Type	Description /Signal type	Connection /Measuring information
1	A	Power supply, camera	Exterior mirror camera, passenger's side
2	E	APIX data cable	Exterior mirror camera, passenger's side
3	E/A	LIN bus, camera	Exterior mirror camera, passenger's side
4	E	APIX data cable	Exterior mirror camera, passenger's side
5	M	Shield	Exterior mirror camera, passenger's side
