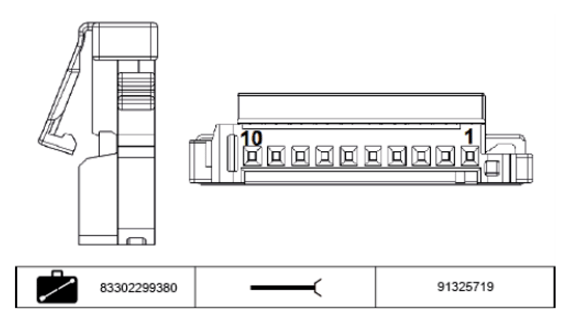

All-Round Vision Camera A167*2B Connector End View
Pin Assignments At Plug Connector A167*2B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | M | Ground | Ground point |
| 2 | A | FBAS signal | Headunit |
| 3 | A | FBAS signal | Headunit |
| 4 | M | Shield | Headunit |
| 5 | E/A | K-CAN bus signal | Bus connection |
| 6 | E/A | K-CAN bus signal | Bus connection |
| 7 | E | Supply, terminal 15 | Fuse carrier, rear |
| 8 | -- | Not used | |
| 9 | -- | Not used | |
| 10 | -- | Not used |
