Remove and install (replace) control unit Front Electronic Module (FEM)

Necessary preliminary tasks:

• Clamp off BATTERY LEAD FROM NEGATIVE CONNECTION POINT
• Remove SIDE TRIM PANEL from footwell on right A-pillar

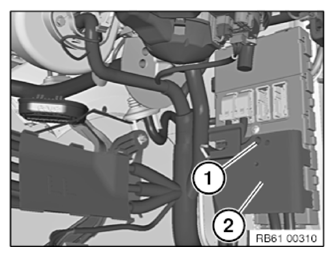

Release screw (1) and remove cover (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Attention!

Risk of damage to positive battery cable connector!

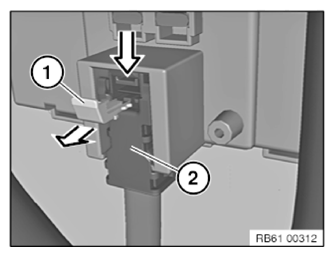

Unlock the positive battery cable connector:

1. Loosen lock (1) in direction of arrow.
2. Unlock top positive battery cable connector (2) in direction of arrow.
3. Disconnect battery positive lead (2).

Courtesy of BMW OF NORTH AMERICA, INC.

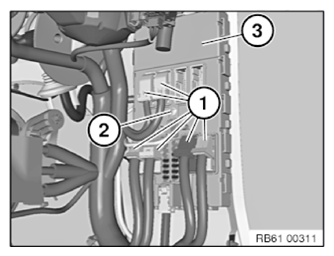

Unlock plug connections-(1) and disconnect.

Release bolt (2) and remove control unit (3).

Tightening torque 61 35 5AZ .

Installation note:

Make sure all plug connections are correctly latched.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out PROGRAMMING/ENCODING .
