Removing and installing air intake plenum (S55 engine)

Attention!

Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary work:

• Disconnect BATTERY EARTH LEAD .
• Remove CHARGE AIR DUCT TO THROTTLE VALVE .
• Remove intake filter housing. Refer to REMOVING AND INSTALLING/REPLACING INTAKE SILENCER HOUSING, LEFT and REMOVING AND INSTALLING/REPLACING INTAKE SILENCER HOUSING .
• Remove CHARGE AIR COOLER .
• Remove IGNITION COIL COVER .
• Only M4 GTS:  Remove FUEL INJECTOR VALVE FOR WATER INJECTION .

Removal:

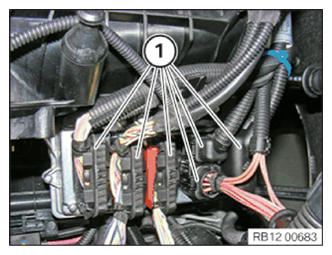

Disconnect all plug connections (1) on engine control unit.

Courtesy of BMW OF NORTH AMERICA, INC.

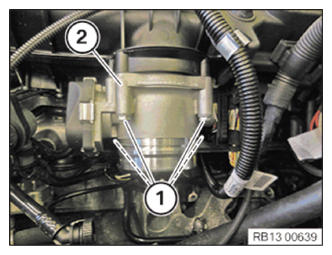

Release screws (1) on throttle body (2).

Courtesy of BMW OF NORTH AMERICA, INC.

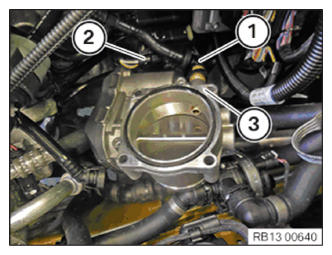

Unlock tank ventilation line (1) and disconnect.

Unlock connector (2) and remove.

Remove throttle body (3).

Courtesy of BMW OF NORTH AMERICA, INC.

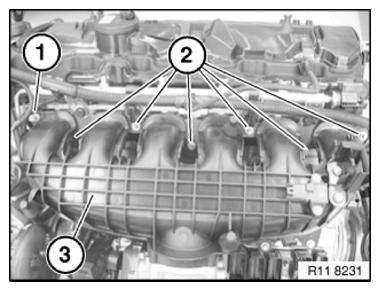

Release screw (1).

Unscrew nuts (2).

Feed out and remove intake plenum (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

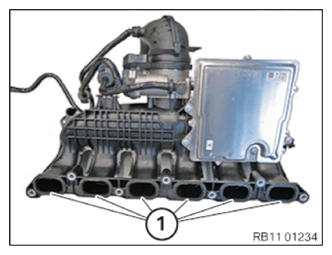

Replace gaskets (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in and position intake plenum (3).

Screw-in and join nuts (2).

Tightening torque: 11 61 1AZ .

Screw in and join screw (1).

Tightening torque: 11 61 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

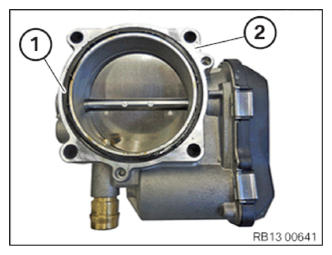

Replace sealing ring (1) of throttle body (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Install throttle body (3).

Connect and lock tank ventilation line (1).

Tank ventilation line (1) must engage audibly.

Connect connector (2) and lock.

Connector (2) must snap audibly into place.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screw (1) on throttle body (2).

Tightening torque 13 54 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install CHARGE AIR COOLER .
• Only M4 GTS:  Install FUEL INJECTOR VALVES FOR WATER INJECTION .
• Install CHARGE AIR DUCT ON THROTTLE VALVE .
• Install intake silencer housing. Refer to REMOVING AND INSTALLING/REPLACING INTAKE SILENCER HOUSING, LEFT and REMOVING AND INSTALLING/REPLACING INTAKE SILENCER HOUSING .
• Install IGNITION COIL COVER .
• Connect BATTERY EARTH LEAD .
