Replacing Engine Support Front Left Side Frame Connection (Front Left Wheel Arch Removed)

Observe procedure for REPAIR STAGE 3 .

Read contents of BODY, GENERAL .

Spot-weld bonding is used on this vehicle. Observe specific PROCEDURE .

For stripping and rebuilding operations, refer to surrounding texts on KSD (flat rate unit number 41 14 531).

Following new body parts are required (see Electronic Parts Catalogue):

Courtesy of BMW OF NORTH AMERICA, INC.

Removal

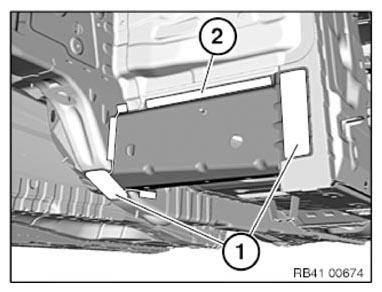

Open welded connections in areas (1).

OPEN spot-welded adhesive joints in area (2).

Courtesy of BMW OF NORTH AMERICA, INC.

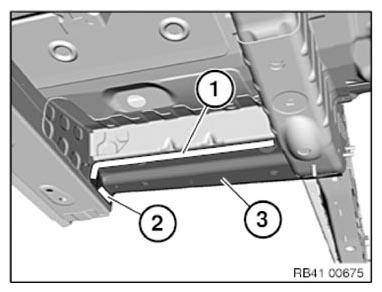

Open welded connections In area (1).

Open spot-welded adhesive joints In area (2) and remove engine support/side frame connection (3).

Courtesy of BMW OF NORTH AMERICA, INC.

New part preparation

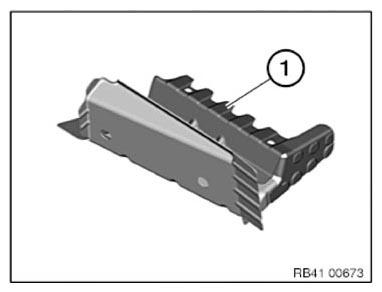

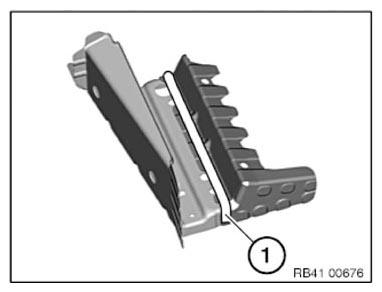

Open welded connections In area (1) and remove part section not required.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Install and weld new parts.

Attention!

Risk of damage to adhesive area.

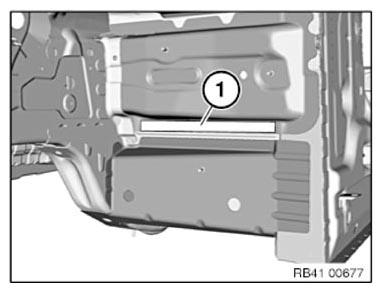

Avoid applying too much heat to adjacent adhesive area (1).
