Removing and installing roof switch cluster (front) (2016-2022)

Special tools required:

00 9 325

IMPORTANT: Follow notes for HANDLING LIGHT BULBS (INTERIOR LIGHTING) .

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

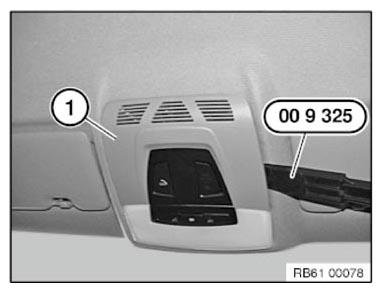

Carefully unclip cover (1) with special tool 00 9 325 and remove.

Installation note:

Ensure cover (1) is correctly seated.

Courtesy of BMW OF NORTH AMERICA, INC.

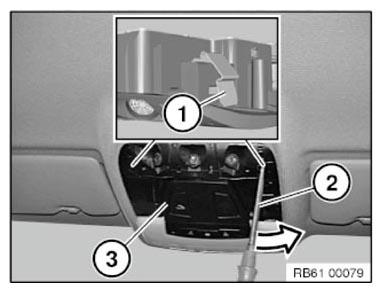

Unlock left/right retaining lugs (1) with screwdriver (2) in direction of arrow.

Remove roof switch cluster (3).

Unlock plug connections underneath and disconnect.

Installation note:

Retaining lugs (1) must not be damaged.

Make sure roof switch cluster (3) is correctly fitted.

If necessary, INITIALIZE slide/tilt sunroof.

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Disconnecting the plug connection for the SOS emergency call button results in fault entries in the telephone control unit (restriction in the emergency call system).

After installation, read out fault memory and if necessary delete fault code entry.
