32 31 020 Removing and installing/replacing lower section of steering column shroud

Necessary preliminary tasks:

• Remove STEERING COLUMN SHROUD UPPER SECTION .
• Move steering column in "top" and "extended" position.

Release screws (1).

Push retaining lugs (2) outward slightly.

Unclip steering column shroud in downward direction.

Fig 1: Identifying Steering Column Shroud Lower Section Screws And Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

Tilt steering column shroud in downward direction.

Disconnect ring aerial connector (1).

Unclip wiring harness (2).

Remove steering column shroud lower section (3).

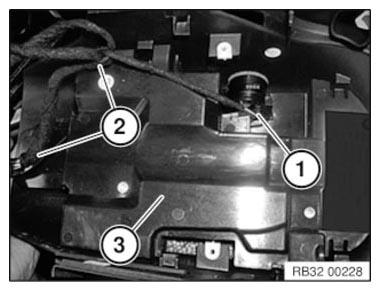

Fig 2: Identifying Ring Aerial Connector, Wiring Harness And Steering Column Shroud Lower Section

Courtesy of BMW OF NORTH AMERICA, INC.
