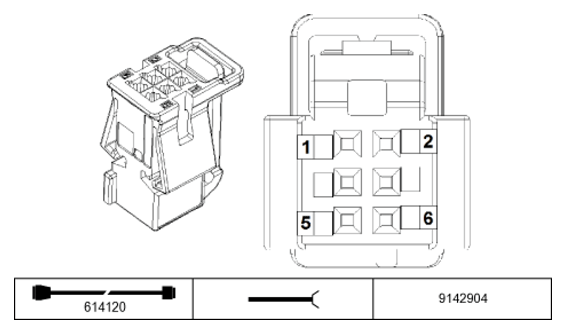

Seat Module, Driver A245*6B Connector End View
Pin Assignments At Plug Connector A245*6B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | E | Ground Fan 1, driver's seat cushion | Fan 1, driver's seat cushion |
| 2 | E | Ground Fan 4, driver's seat backrest | Fan 4, driver's seat backrest |
| 3 | A | Activation Fan 1, driver's seat cushion | Fan 1, driver's seat cushion |
| 4 | A | Activation Fan 4, driver's seat backrest | Fan 4, driver's seat backrest |
| 5 | E | Signal Fan 4, driver's seat backrest | Fan 4, driver's seat backrest |
| 6 | E | Signal Fan 1, driver's seat cushion | Fan 1, driver's seat cushion |
