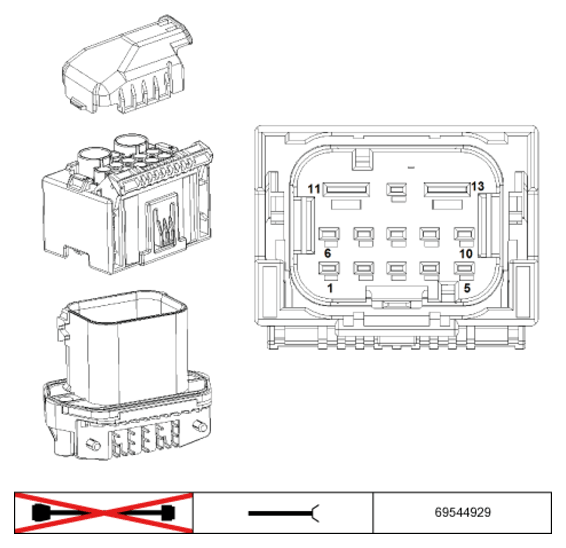

Parking Brake Control Module A90*1B Connector End View
Pin Assignments At Plug Connector A90*1B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | E | Supply, terminal 30 | Fuse F104 |
| 2 | E | Signal Parking brake button | Parking brake button |
| 3 | E | Signal Parking brake button | Parking brake button |
| 4 | M | Ground | Ground connector Z10*14B |
| 5 | E/A | PT-CAN bus signal | Bus connection |
| 6 | E | Wheel speed signal | Dynamic stability control (DSC) |
| 7 | E | Signal Parking brake button | Parking brake button |
| 8 | E | Signal Parking brake button | Parking brake button |
| 9 | E | Wake-up signal, terminal 15 | Connector, terminal 15 wake-up signal |
| 10 | E/A | PT-CAN bus signal | Bus connection |
| 11 | E | Supply, terminal 30 | Fuse holder, rear |
| 12 | E | Signal Parking brake button | Parking brake button |
| 13 | M | Ground | Ground connector Z10*14B |
