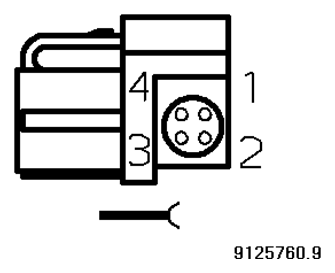

Electronic Night Vision Module A80*2B Connector End View
Pin Assignments At Plug Connector A80*2B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 0 | M | Shielding | Night vision camera |
| 1 | A | Supply | Night vision camera |
| 2 | E | Video signal | Night vision camera |
| 3 | E | Ground | Night vision camera |
| 4 | E | Video signal | Night vision camera |
