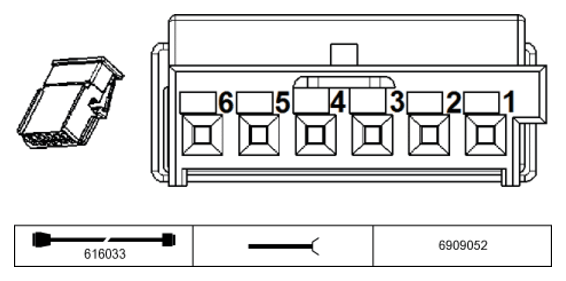

Electronic Night Vision Module A80*1B Connector End View
Pin Assignments At Plug Connector A80*1B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | E | Signal Night Vision camera button | Night Vision camera button |
| 2 | -- | Not used | |
| 3 | -- | Not used | |
| 4 | -- | Not used | |
| 5 | E/A | PT-CAN bus signal | Bus connection |
| 6 | E/A | PT-CAN bus signal | Bus connection |
