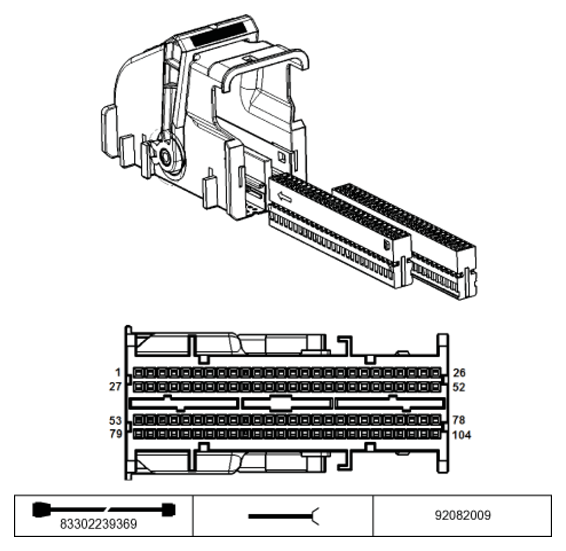

Crash Safety Module A11*1B Connector End View
Pin Assignments At Plug Connector A11*1B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | E | Seat-occupancy detection, front passenger Positive | Seat-occupancy detection, front passenger not USA |
| 2 | E | Seat-occupancy detection, front passenger Negative connection | Seat-occupancy detection, front passenger not USA |
| 3 | A | Emergency call signal | Telematic Communication Box |
| 4 | A | Actuation of indicator lamp for front passenger airbag deactivation | Roof function centre |
| 5 | E | Airbag sensor, positive connection | Airbag sensor, front right door |
| 6 | E | Airbag sensor, negative connection | Airbag sensor, front right door |
| 7 | E | Airbag sensor, negative connection | Airbag sensor, front left door |
| 8 | E | Airbag sensor, positive connection | Airbag sensor, front left door |
| 9 | E | Airbag sensor, positive connection | Airbag front sensor, left USA |
| 10 | E | Airbag sensor, negative connection | Airbag front sensor, left USA |
| 11 | E | Airbag sensor, negative connection | Airbag front sensor, right USA |
| 12 | E | Airbag sensor, positive connection | Airbag front sensor, right USA |
| 13 | M | Ground | Ground connection Z10*19B |
| 14 | E/A | LIN bus signal | Seat-occupancy detection, front passenger USA |
| 15 | -- | Not used | |
| 16 | E | Power supply, terminal 30B | Body Domain Controller |
| 17 | E | Signal Seat-position sensor, front passenger | Seat-position sensor, front passenger |
| 18 | -- | Not used | |
| 19 | -- | Not used | |
| 20 | E | Signal Seat-occupancy detection, front passenger | Seat-occupancy detection, front passenger USA |
| 21 | E | Signal, seat belt buckle contact | Driver's seat belt buckle contact |
| 22 | E | Signal, seat belt buckle contact | Passenger's seat belt buckle contact |
| 23 | E | Signal, seat belt buckle contact | Seat belt buckle contact, rear driver's side |
| 24 | E | Signal, seat belt buckle contact | Seat belt buckle contact, rear centre |
| 25 | E | Signal, seat belt buckle contact | Seat belt buckle contact, rear passenger's side |
| 26 | E/A | PT-CAN bus signal | Bus connection |
| 27 | E | Airbag sensor, positive connection | Integrated chassis management |
| 28 | E | Airbag sensor, negative connection | Integrated chassis management |
| 29 | E | Airbag sensor, negative connection | Integrated chassis management |
| 30 | E | Airbag sensor, positive connection | Integrated chassis management |
| 31 | E | Airbag sensor, positive connection | Airbag sensor, left B-pillar |
| 32 | E | Airbag sensor, negative connection | Airbag sensor, left B-pillar |
| 33 | E | Airbag sensor, negative connection | Airbag sensor, right B-pillar |
| 34 | E | Airbag sensor, positive connection | Airbag sensor, right B-pillar |
| 35 | -- | Pedestrian protection sensor, positive connection | Pedestrian sensor, left |
| 36 | -- | Pedestrian protection sensor, negative connection | Pedestrian sensor, left |
| 37 | E | Pedestrian protection sensor, negative connection | Pedestrian sensor, centre not USA |
| 38 | E | Pedestrian protection sensor, positive connection | Pedestrian sensor, centre not USA |
| 39 | E | Pedestrian protection sensor, negative connection | Pedestrian sensor, right |
| 40 | A | Belt tensioner activation, negative connection | Retractor tensioner, driver |
| 41 | A | Belt tensioner activation, positive connection | Retractor tensioner, driver |
| 42 | A | Belt tensioner activation, positive connection | Retractor tensioner, front passenger |
| 43 | A | Belt tensioner activation, negative connection | Retractor tensioner, front passenger |
| 44 | A | Airbag activation, negative connection | Gas generator for left head airbag |
| 45 | A | Airbag activation, positive connection | Gas generator for left head airbag |
| 46 | A | Airbag activation, positive connection | Gas generator for right head airbag |
| 47 | A | Airbag activation, negative connection | Gas generator for right head airbag |
| 48 | A | Airbag activation, negative connection | Gas generator for driver side airbag |
| 49 | A | Airbag activation, positive connection | Gas generator for driver side airbag |
| 50 | A | Airbag activation, positive connection | Gas generator for front passenger side airbag |
| 51 | A | Airbag activation, negative connection | Gas generator for front passenger side airbag |
| 52 | E/A | PT-CAN bus signal | Bus connection |
| 53 | A | Belt tensioner activation, positive connection | Gas generator for rear left belt tensioner |
| 54 | A | Belt tensioner activation, negative connection | Gas generator for rear left belt tensioner |
| 55 | A | Belt tensioner activation, negative connection | Gas generator for rear right belt tensioner |
| 56 | A | Belt tensioner activation, positive connection | Gas generator for rear right belt tensioner |
| 57 | A | Triggering, safety battery terminal, positive | Gas generator, safety battery terminal |
| 58 | A | Triggering, safety battery terminal, negative | Gas generator, safety battery terminal |
| 59 | A | Triggering, anchor fitting tensioner, negative | Anchor fitting tensioner, driver |
| 60 | A | Triggering, anchor fitting tensioner, positive | Anchor fitting tensioner, driver |
| 61 | A | Triggering, active head restraint, positive | Gas generator for driver active head restraint |
| 62 | A | Triggering, active head restraint, negative | Gas generator for driver active head restraint |
| 63 | A | Triggering, active head restraint, negative | Gas generator for front passenger active head restraint |
| 64 | A | Triggering, active head restraint, positive | Gas generator for front passenger active head restraint |
| 65 | E | Pedestrian protection sensor, positive connection | Pedestrian sensor, right |
| 66 | A | Pedestrian protection activation, negative connection | Pedestrian guard actuator, rear left |
| 67 | A | Pedestrian protection activation, positive connection | Pedestrian guard actuator, rear left |
| 68 | A | Pedestrian protection activation, positive connection | Pedestrian guard actuator, rear right |
| 69 | A | Pedestrian protection activation, negative connection | Pedestrian guard actuator, rear right |
| 70 | A | Triggering, seat belt force limiter, negative | Gas generator for front left belt force limiter USA |
| 71 | A | Triggering, seat belt force limiter, positive | Gas generator for front left belt force limiter USA |
| 72 | A | Triggering, seat belt force limiter, positive | Gas generator for front right belt force limiter USA |
| 73 | A | Triggering, seat belt force limiter, negative | Gas generator for front right belt force limiter USA |
| 74 | -- | Not used | |
| 75 | -- | Not used | |
| 76 | -- | Not used | |
| 77 | -- | Not used | |
| 78 | E | Wake-up signal, terminal 15 | Connector, terminal 15 wake-up signal |
| 79 | -- | Not used | |
| 80 | -- | Not used | |
| 81 | -- | Not used | |
| 82 | -- | Not used | |
| 83 | E | Signal Safety battery terminal | Safety battery terminal, auxiliary battery |
| 84 | E | Signal Safety battery terminal | Safety battery terminal, auxiliary battery |
| 85 | E | Crash signal | Electric-machine electronics Hybrid |
| 86 | E | Crash signal | Electric-machine electronics Hybrid |
| 87 | A | Triggering, anchor fitting tensioner, positive | End fitting pretensioner, front passenger |
| 88 | A | Triggering, anchor fitting tensioner, negative | End fitting pretensioner, front passenger |
| 89 | -- | Not used | |
| 90 | -- | Not used | |
| 91 | -- | Not used | |
| 92 | -- | Not used | |
| 93 | -- | Not used | |
| 94 | -- | Not used | |
| 95 | -- | Not used | |
| 96 | -- | Not used | |
| 97 | -- | Not used | |
| 98 | -- | Not used | |
| 99 | -- | Not used | |
| 100 | -- | Not used | |
| 101 | -- | Not used | |
| 102 | -- | Not used | |
| 103 | -- | Not used | |
| 104 | -- | Not used |
