41 51... Removing And Installing Door

Attention!

Do not damage adjoining body components.

The graphics are schematic representations and are to be applied to the relevant vehicle type.

Open door.

Release screw on connector frame.

Front door:

Tightening torque 41 51 4AZ .

Rear door:

Tightening torque 41 52 4AZ.

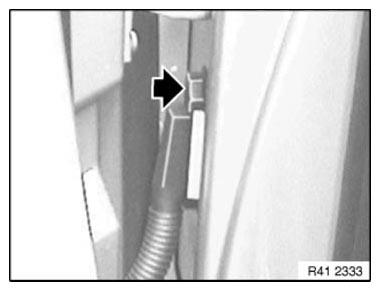

Fig 1: Locating Door Connector Frame Screw

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Secure door against closing.

Release screw (1) on door stop.

Front door:

Tightening torque 51 21 3AZ .

Rear door:

Tightening torque 51 22 3AZ.

Open door up to limit position.

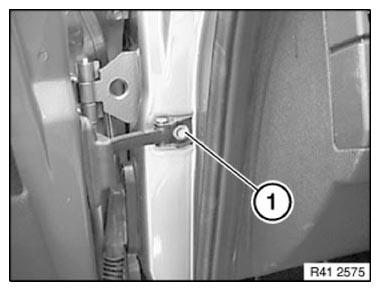

Fig 2: Identifying Door Stop Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws between both hinge elements at top and bottom.

Front door:

Tightening torque 41 51 1AZ

Rear door:

Tightening torque 41 52 1AZ.

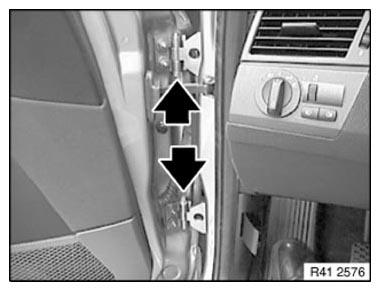

Fig 3: Releasing Screws Between Both Hinge Elements (Top And Bottom)

Courtesy of BMW OF NORTH AMERICA, INC.

Pull the plug connection from the door post, unlock and disconnect it by pulling out the retaining clip.

Unhinge door by moving upwards and placing it on a suitable surface.

Installation:

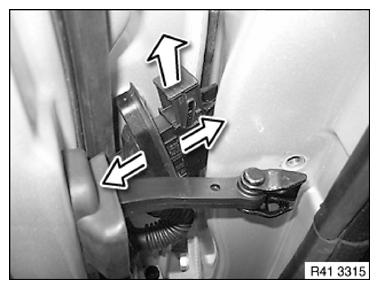

Fig 4: Pulling Plug Connection From Door Post

Courtesy of BMW OF NORTH AMERICA, INC.
