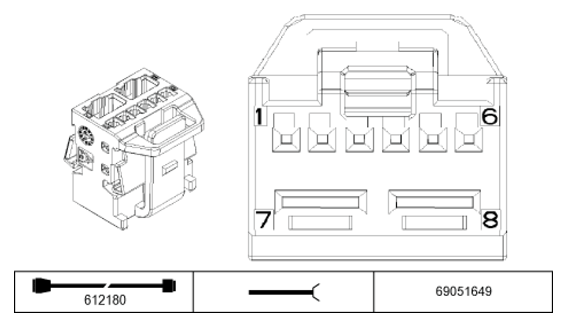

Front Passenger Seat Module A246*3B Connector End View
Pin Assignments At Plug Connector A246*3B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | -- | Not used | |
| 2 | M | Ground | Ground point |
| 3 | -- | Not used | |
| 4 | -- | Not used | |
| 5 | E/A | Body CAN2 bus connection | Body CAN2 bus connection |
| 6 | E/A | Body CAN2 bus connection | Body CAN2 bus connection |
| 7 | E | Power supply, terminal 30B | Fuse F68 |
| 8 | M | Ground | Ground point |
