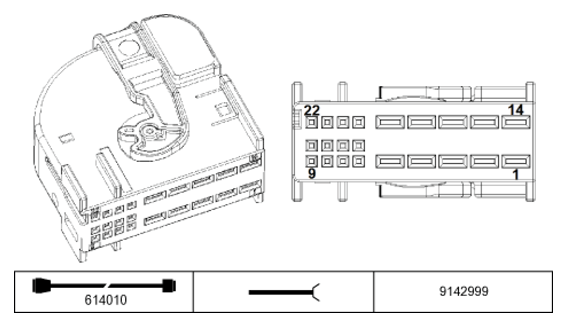

Front Passenger Seat Module A246*2B Connector End View
Pin Assignments At Plug Connector A246*2B
| Pin | Type | Description /Signal type | Connection /Measuring information |
|---|---|---|---|
| 1 | -- | Not used | |
| 2 | A | Activation Seat tilt adjustment drive, passenger's seat | Seat tilt adjustment drive, passenger's seat |
| 3 | A | Activation Seat height adjustment drive, passenger's seat | Seat height adjustment drive, passenger's seat |
| 4 | -- | Not used | |
| 5 | A | Activation Seat forward/backward adjustment drive, passenger's seat | Seat forward/backward adjustment drive, passenger's seat |
| 6 | -- | Not used | |
| 7 | E | Ground, Hall sensor | Seat tilt adjustment drive, passenger's seat |
| 8 | E | Ground, Hall sensor | Seat height adjustment drive, passenger's seat |
| 9 | M | Ground, Hall sensor | Seat forward/backward adjustment drive, passenger's seat |
| 10 | -- | Not used | |
| 11 | E | Hall sensor signal | Seat tilt adjustment drive, passenger's seat |
| 12 | E | Hall sensor signal | Seat height adjustment drive, passenger's seat |
| 13 | E | Hall sensor signal | Seat forward/backward adjustment drive, passenger's seat |
| 14 | -- | Not used | |
| 15 | A | Activation Seat tilt adjustment drive, passenger's seat | Seat tilt adjustment drive, passenger's seat |
| 16 | A | Activation Seat height adjustment drive, passenger's seat | Seat height adjustment drive, passenger's seat |
| 17 | -- | Not used | |
| 18 | A | Activation Seat forward/backward adjustment drive, passenger's seat | Seat forward/backward adjustment drive, passenger's seat |
| 19 | -- | Not used | |
