41 00... Frame Alignment Control Body Dimensions

Dimensions in mm.

Measurement tolerances:

The control points shown serve to check the body and the set of attachments.

The specified dimensions/measurements refer to the centerpoint of the bore/screw.

Under Body View 1

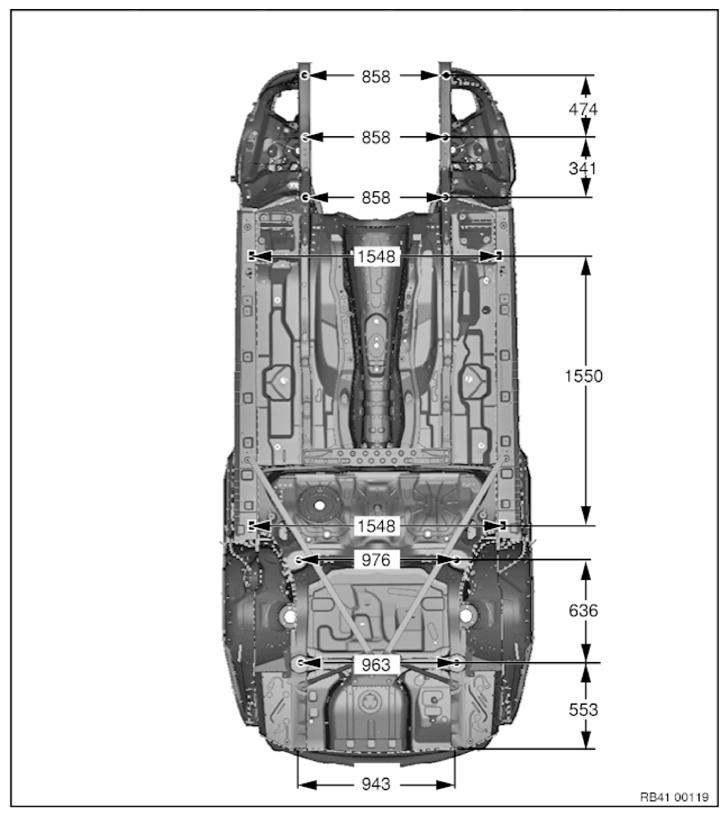

Fig 1: Under Body Frame Alignment Dimensions And Measurement Points (Under Body View 1)

Courtesy of BMW OF NORTH AMERICA, INC.

Under Body View 2

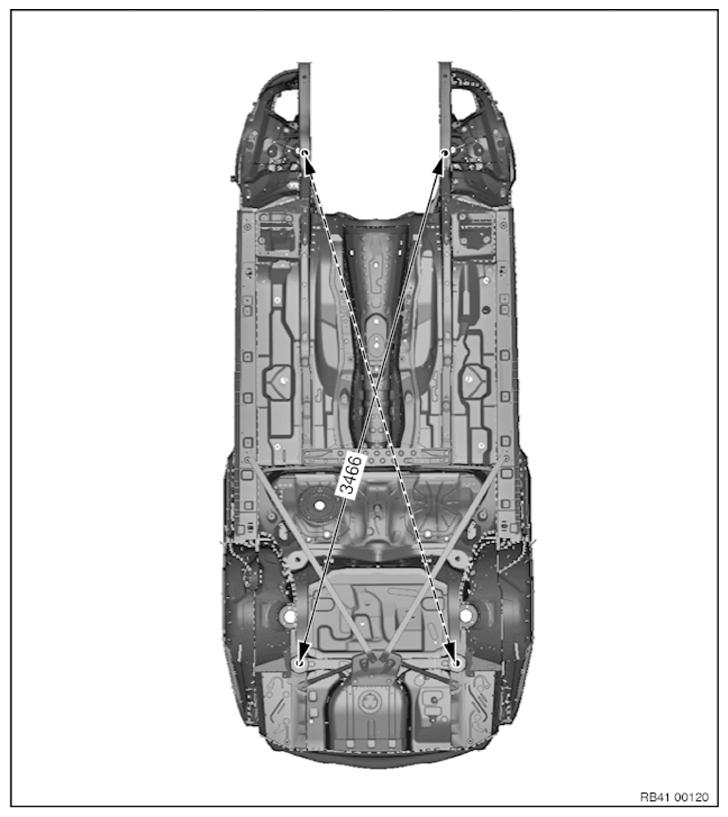

Fig 2: Under Body Frame Alignment Dimensions And Measurement Points (Under Body View 2)

Courtesy of BMW OF NORTH AMERICA, INC.

Top View, Front End

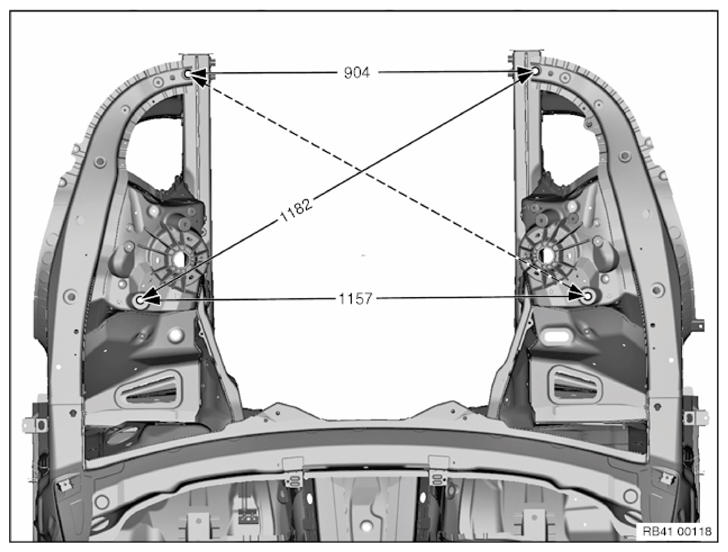

Fig 3: Engine Compartment Frame Alignment Dimensions And Measurement Points (Top View, Front End)

Courtesy of BMW OF NORTH AMERICA, INC.

The specified dimensions refer to removed assemblies.
