Removing/Installing Trailing Link At Tension Strut Tower
Removal:
NOTE:
TECHNICAL INFORMATION
Driving without the strut brace/front-end strut or tension strut is not permitted.
Driving without the strut brace/front-end strut or tension strut is not permitted.

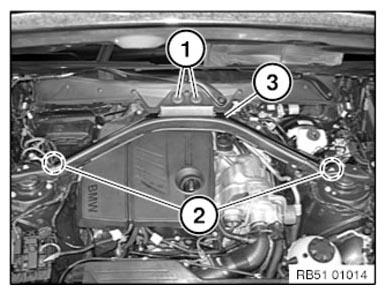

- Unclip the covers (1) and unscrew the underlying bolts.
- Loosen the screws (2) and remove the tension strut (3).
Installation:
Position tension strut (3).
Tighten screws (1) and (2).
NOTE:
Use new screws.
Tightening torque specification :
- Joining torque : 56 Nm
- Angle of rotation : 90°
Clip in the covers of the screws (1).
