Removing All Intermediate Levers

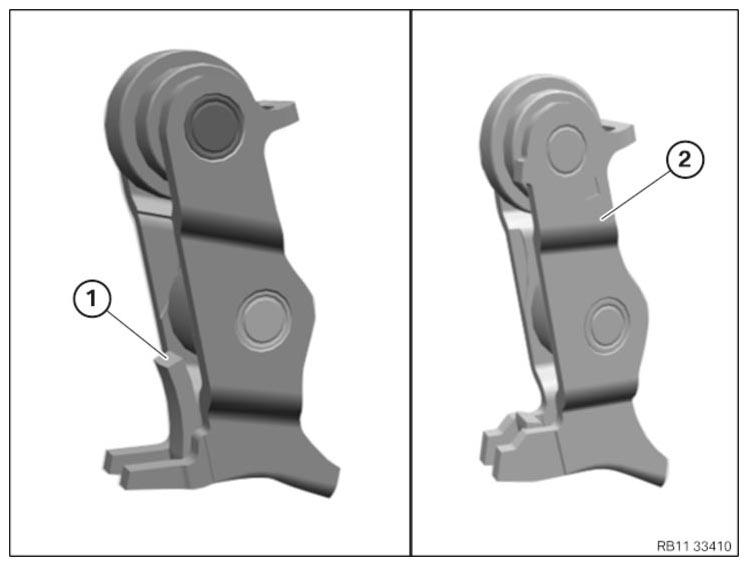

Intermediate lever
- Intermediate lever
(L-shaped contour)
- Intermediate lever
(S-shaped contour)
NOTE:
TECHNICAL INFORMATION
When replacing one or more intermediate levers:
When removing the intermediate lever, it is imperative to note the part number of the intermediate lever.
A mixed installation of intermediate levers is only permitted in combination with the appropriate torsion spring.
For further information on possible combinations, see the applicable BMW parts catalogue.
When replacing one or more intermediate levers:
When removing the intermediate lever, it is imperative to note the part number of the intermediate lever.
A mixed installation of intermediate levers is only permitted in combination with the appropriate torsion spring.
For further information on possible combinations, see the applicable BMW parts catalogue.
NOTE:
The description is for one component only. The procedure is identical for all further components.

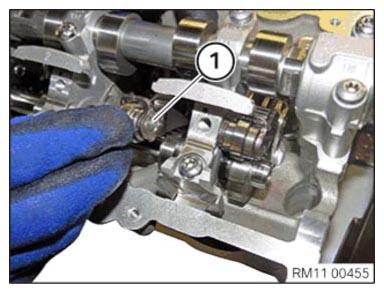

- Remove the intermediate lever (1) and arrange it in the special tool 0 495 105 (11 4 480) in order.
