Removing All Gates

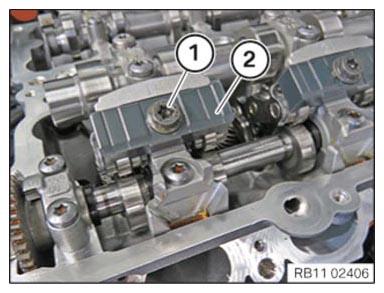

Loosen screw (1).
Remove the gate (2) and place it arranged in order into 0 495 105 (11 4 480).
Repeat the step for all the gates.

G14619326

Courtesy of BMW OF NORTH AMERICA, INC.
