Remove The Lower Right Engine Bulkhead

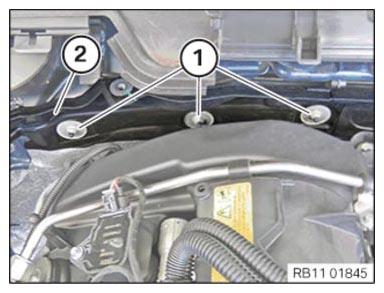

• Loosen screws (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

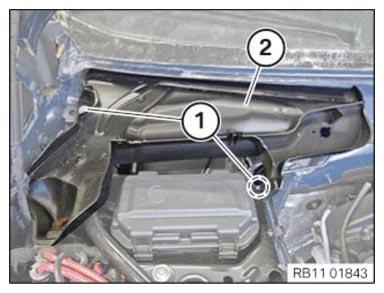

• Loosen nuts (1).
• Remove the engine bulkhead (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

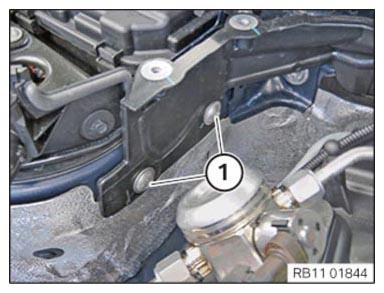

• Loosen screws (1).
• Remove the attachment part (2).

Courtesy of BMW OF NORTH AMERICA, INC.
