Remove Luggage Compartment Removable Panel
Remove Luggage Compartment Removable Panel

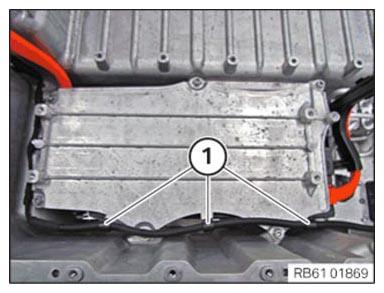

Unclip the line (1).
Courtesy of BMW OF NORTH AMERICA, INC.

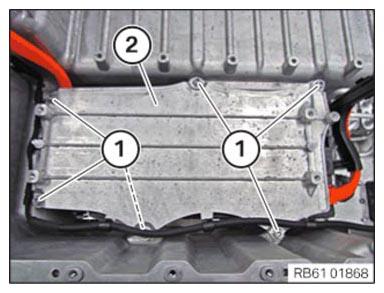

Loosen screws (1).
Remove luggage compartment removable panel (2).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
