Remove Front Entrance Cover Strip
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.

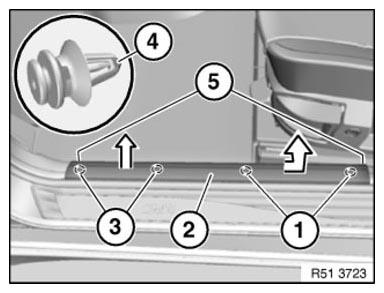

- Detach the retaining lugs (5) of the front door sill cover strip (2) from both adjoining trim panels.
- Unclip the front door sill cover strip (2) at the front attachment points (3) in the direction of the arrow.
- Pull back the front door sill cover strip (2) and guide it out of the rear attachment points (1).
- Remove any remaining clips (4) from the floor panel.
