Releasing Air Conditioning Compressor

• If necessary, unlock and disconnect the plug connection.

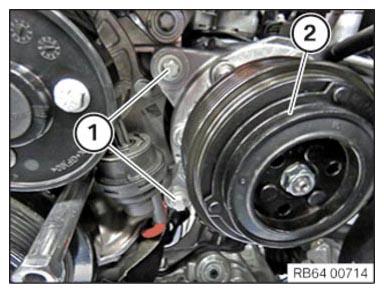

• Loosen screws (1).
• Detach the air conditioning compressor (2) from the component carrier and protect it from falling.

NOTE: Tie the air conditioning compressor up.

Courtesy of BMW OF NORTH AMERICA, INC.
