Preparing The Position Plan

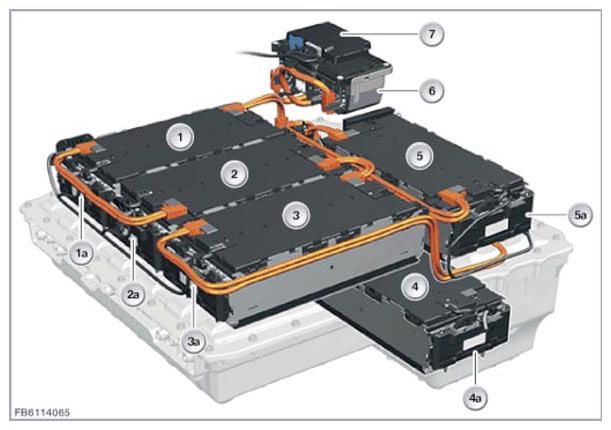

Overview of high-voltage battery unit
- Enter the serial number of the cell module and cell supervision circuit here.
| Enter new serial numbers here: | Exchange part serial number: | ||
|---|---|---|---|
| 1 | Cell module | ||
| 1a | Cell supervision circuit | ||
| 2 | Cell module | ||
| 2a | Cell supervision circuit | ||
| 3 | Cell module | ||
| 3a | Cell supervision circuit | ||
| 4 | Cell module | ||
| 4a | Cell supervision circuit | ||
| 5 | Cell module | ||
| 5a | Cell supervision circuit | ||
| 6 | Safety box | ||
| 7 | Battery management electronics (SME) |
