Partially Remove The Front Seat
WARNING:
Airbag unit.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Before performing any work on the airbag, always disconnect the battery ground lead from the battery.
- Airbag unit may only be set down with the cushion (airbag itself) facing upwards.
- For additional information see: SAFETY REGULATIONS ON HANDLING AIRBAG SYSTEM COMPONENTS/GAS GENERATORS .
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.

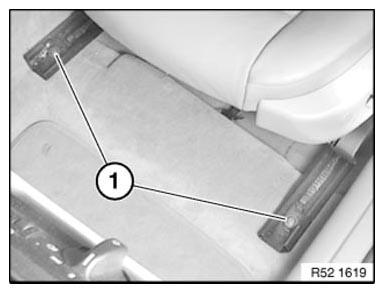

- Move seat to upper back position.
- Loosen screws (1).

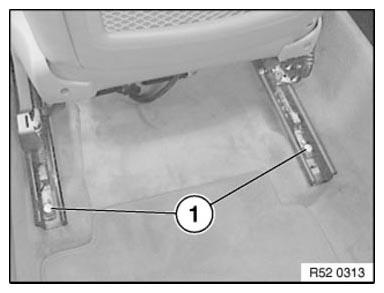

- Adjust the seat to the front top.
- Loosen screws (1).
Disconnecting all battery ground leads
- Place the front seat to the rear.

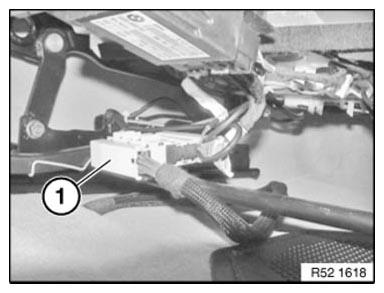

- Unlock plug connection (1) and disconnect.
