Partially Installing The Propeller Shaft

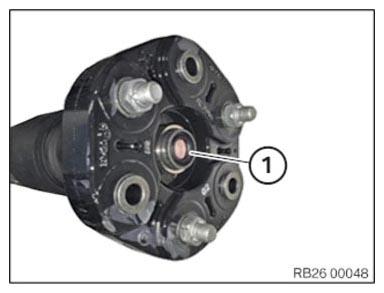

Check the centering (1) and replace it if necessary.
Grease centering (1).

Courtesy of BMW OF NORTH AMERICA, INC.

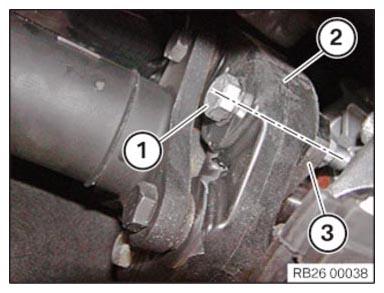

Assemble the screw connections (1) of the flexible disc (2) and the three-hole flange (3) according to the self-affixed identification.
This should prevent a humming noise from the drive train during driving.

Courtesy of BMW OF NORTH AMERICA, INC.

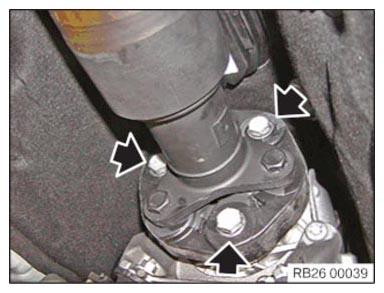

Apply the screws (arrows) until hand-tight, do not tighten yet.

Courtesy of BMW OF NORTH AMERICA, INC.

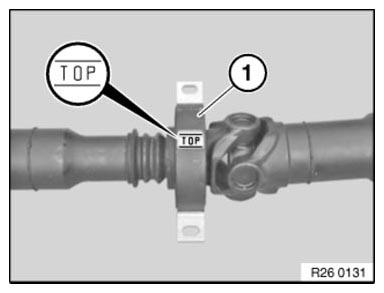

Center mount with TOP marking:
The center mount (1) must be installed with the TOP marking at the top in the transmission tunnel.

Courtesy of BMW OF NORTH AMERICA, INC.

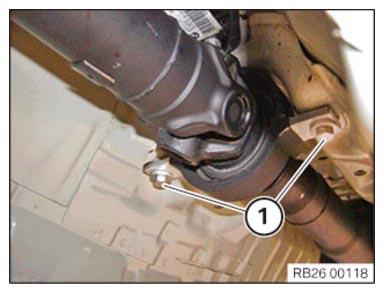

Position center mount.
Hand-tighten the bolts (1), but do not tighten fully.

Courtesy of BMW OF NORTH AMERICA, INC.
Replace screws.
Parts: Screws

Provide counter support for the bolts of the flexible disc on the nut and tighten.

TIGHTENING TORQUE SPECIFICATION

Rear flexible disc to transmission output flange
M12 Replace screws. Jointing torque and angle of rotation must be observed without fail. Tightening via screw.	Jointing torque	55 Nm
	Angle of rotation	90°

Courtesy of BMW OF NORTH AMERICA, INC.

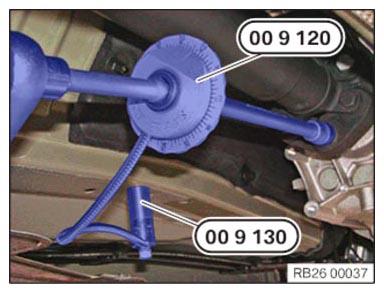

Secure the special tool 0 490 504 (00 9 120) with the special tool 0 495 108 (00 9 130) on the vehicle underbody and continue to screw it in according to the angle of rotation.
Tighten the screws (1).

TIGHTENING TORQUE SPECIFICATION

Center mount to body
M8	Tightening torque	21 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
