Installing The Oxygen Sensor Monitor

Preparing oxygen sensor

NOTE: TECHNICAL INFORMATION
Grease the threads of new oxygen sensors thinly and evenly.
For oxygen sensors that are reused, the following should be observed:
Thinly and evenly grease the oxygen sensor on the thread only. Do not clean the part of the oxygen sensor that does not protrude into the exhaust line (sensor ceramics) and do not grease.
For additional information see: OVERVIEW OF CONSUMABLES (APPLICABLE BMW PARTS CATALOGUE) .

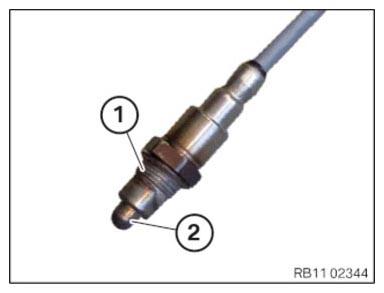

Prepare the oxygen sensor.

Do not damage the sensor ceramics.

Thread
Sensor ceramics

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The cable of the oxygen sensor monitor is gray. The installation location of the oxygen sensor monitor is behind the catalytic converter.

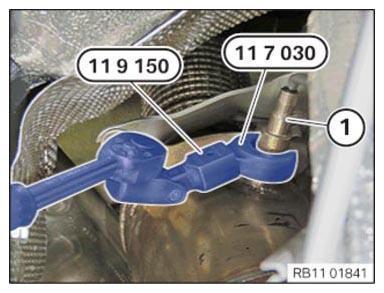

Position the oxygen sensor monitor (1).

Tighten the oxygen sensor monitor (1) with the special tools 0 493 751 (11 9 150) and 0 491 075 (11 7 030).

TIGHTENING TORQUE SPECIFICATION

Oxygen sensor monitor
M18x1.5	Tightening torque	50 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

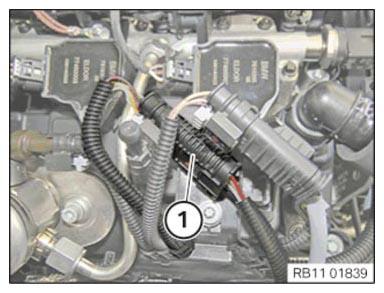

Connect the connector (1) and clip into carrier plate.

Courtesy of BMW OF NORTH AMERICA, INC.

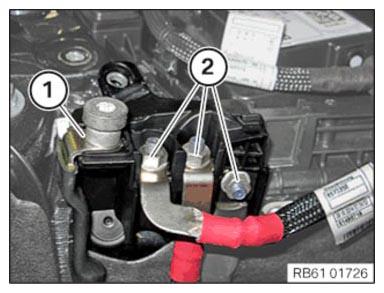

Fasten the cable to the power distribution of the front positive battery cable.
Feed in the accompanying cable and tighten the nut (1).
Feed in the accompanying cable and tighten the nut (2).

Courtesy of BMW OF NORTH AMERICA, INC.

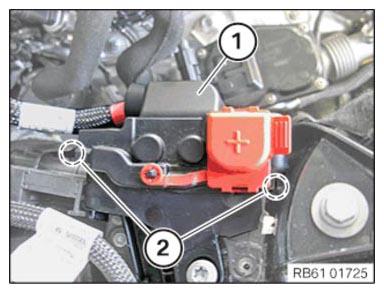

Feed in the cover (1) in a downwards direction.
Check the detents (2) are seated correctly.

Courtesy of BMW OF NORTH AMERICA, INC.

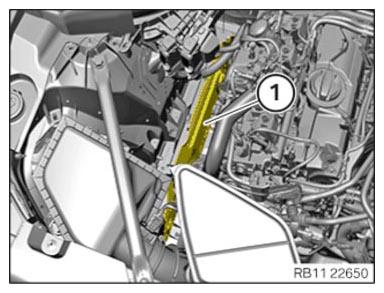

Fasten the heat shield (1) to the side member.

Courtesy of BMW OF NORTH AMERICA, INC.

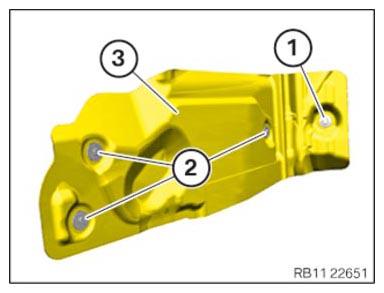

Position the heat shield (3).

Tighten nut (1).

TIGHTENING TORQUE SPECIFICATION

Heat shield to underbody
Screws and nuts	Tightening torque	3 Nm

Tighten the screws (2).

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATION

Heat shield to underbody
Screws and nuts	Tightening torque	3 Nm

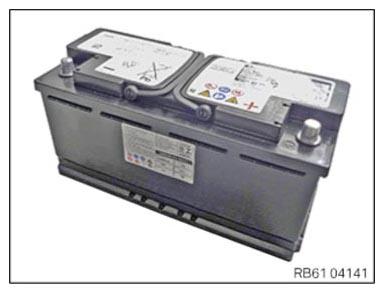

Disconnecting all battery ground leads
