Install The Lower Right Engine Bulkhead

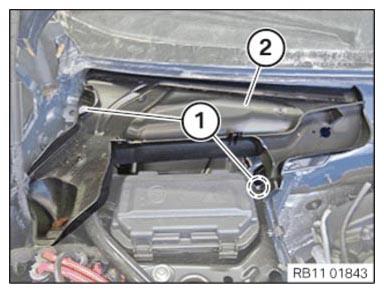

- Position the attachment part (2).
- Tighten the screws (1).TIGHTENING TORQUE SPECIFICATION

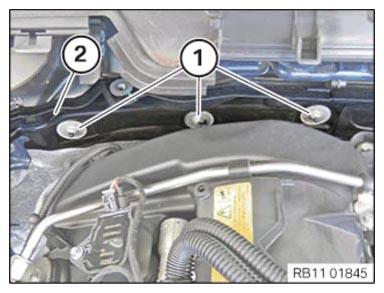

Engine bulkhead to body M8 x 18 Tightening torque 9 Nm - Position the engine bulkhead (2).
- Tighten nuts (1).TIGHTENING TORQUE SPECIFICATION

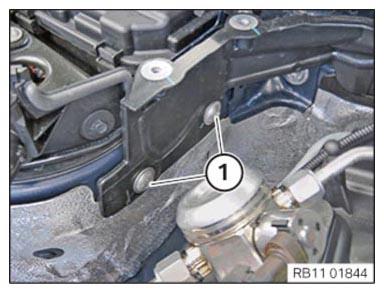

Engine bulkhead to body M8 x 18 Tightening torque 19 Nm - Tighten the screws (1).
TIGHTENING TORQUE SPECIFICATION
| Engine bulkhead to body | ||
| M8 x 18 | Tightening torque | 19 Nm |
