Install New Gasket
Install New Gasket

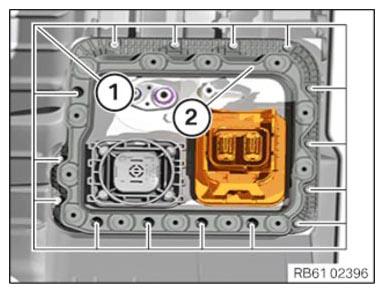

Fit the seal (2) and tighten screws (1).
TIGHTENING TORQUE SPECIFICATION
Seal to lower housing section
M5x18
Replace screw.
Tightening torque
6.8 Nm
