Install Fan Cowl

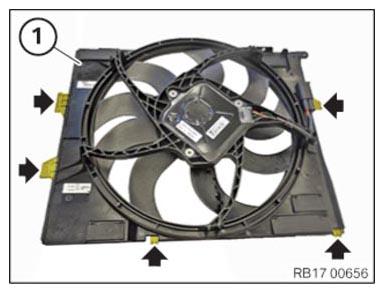

- Check the retaining tabs of the fan cowl (arrows) for damage. If necessary, replace the fan cowl.

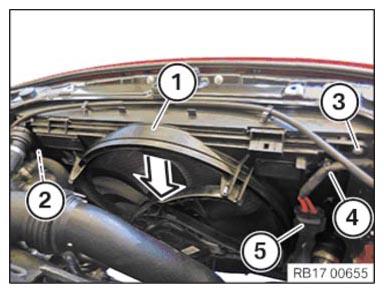

- Feed in and install the fan cowl (1) in the direction of the arrow.
The lock (2) must audibly engage.
- Tighten down screw (3).TIGHTENING TORQUE SPECIFICATION
Fan cowl on radiator D6X20 Tightening torque 6 Nm - Secure clamps (4).
- Connect and lock the connector (5).
The connector (5) must engage audibly.
