Install Both Wiper Arms
Install Both Wiper Arms
NOTE:
Description is for left component only. Procedure on the right side is identical.
Position the wiper arm.
Tighten nut.
TIGHTENING TORQUE SPECIFICATION
Windscreen wiper arm
Tightening torque
35 Nm

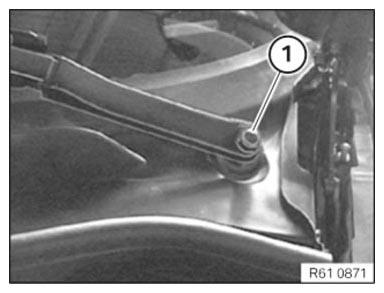

Connect the protective cap (1).
Courtesy of BMW OF NORTH AMERICA, INC.
