Fasten Air Conditioning Compressor

Preparing for the installation of the air-conditioning compressor

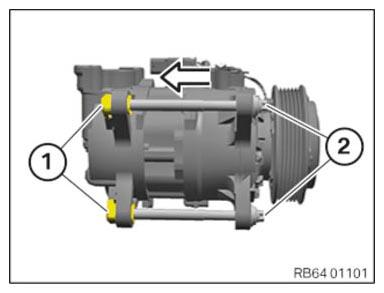

• Screw the screws (2) into the threaded support bushings (1).
• Push back the threaded support bushings (1) with the help of screws (2) slightly in the arrow direction.
• Unscrew the screws (2) out of the threaded support bushings (1).

Courtesy of BMW OF NORTH AMERICA, INC.

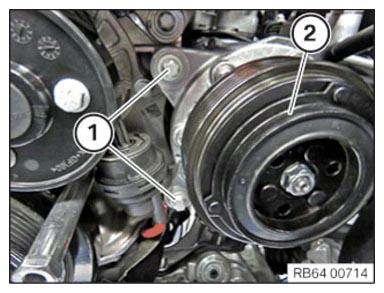

• Correctly position the air conditioning compressor (2).
• Tighten down screws (1).
• If required, connect connector.

Courtesy of BMW OF NORTH AMERICA, INC.
