32 31 215 Removing and installing/replacing double pivot (universal joint) for steering shaft, bottom

IMPORTANT: Do not turn the steering wheel once the steering shaft has been detached from the steering box/steering column! If the lower section of the steering shaft is separated from the steering gear/steering column, the steering column switch cluster may be damaged when the steering wheel is turned!

Necessary preliminary tasks:

Bring steering wheel in straight-ahead driving position and do not alter it during repair.
Remove FRONT LUGGAGE COMPARTMENT WELL .

Release clamping screws (1).

Tightening torque 32 31 2AZ .

Swing out universal joint of steering gear.

Installation note:

Replace clamping bolt

For reuse of the universal joint, recut thread in the universal joint.

Universal joint can only be installed in one position.

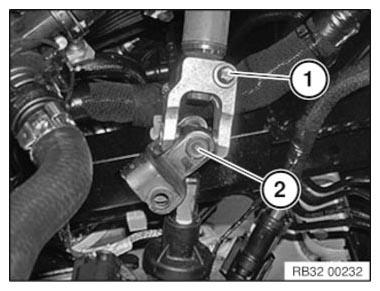

Fig 1: Removing Front Axle Support Clamping Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Release clamping screws (1).

Tightening torque 32 31 3AZ .

Pull universal joint (2) from steering shaft.

IMPORTANT: After disassembly of the universal joint, do not twist the steering gear and steering wheel.

Fig 2: Identifying Steering Shaft Universal Joint And Clamping Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace clamping bolt

For reuse of the universal joint, recut thread in the universal joint.

After installation:

Turn steering wheel in both directions to the limit position. The airbag indicator light must not light up in the process.
