Multifunction steering wheel
The traffic jam assistant function is set to standby mode when the traffic jam assistant button is pressed. Pressing the button again causes the function to be switched off.
The traffic jam assistant button is integrated into the left keypad in the multifunction steering wheel.
The left-hand button pad in the multifunction steering wheel has the following functions:
- Setting the desired driving speed
- Cruise control with brake function or active cruise control
- Switch traffic jam assistant on or off

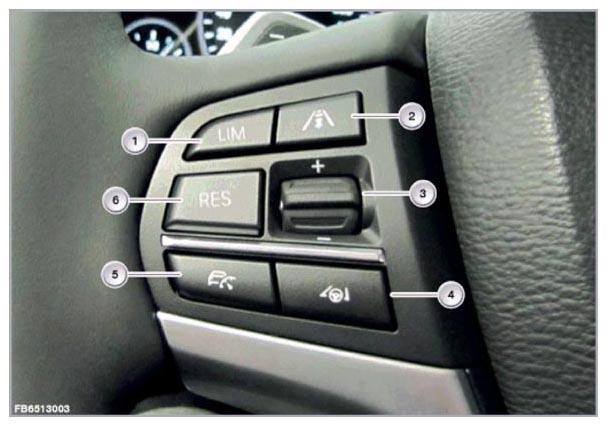

The steering column switch cluster acquires the button signals from the steering column stalks. These signals are forwarded by the steering column switch cluster on the LIN bus to the respective control units. The following illustration shows the left keypad in the multifunction steering wheel for vehicle equipment with traffic jam assistant, giving the example of F15.
| Item | Explanation |
|---|---|
| 1 | LIM button to set the desired driving speed |
| 2 | Button to increase or decrease the distance |
| 3 | Rocker switch to increase or decrease driving speed |
| 4 | Switch traffic jam assistant on or off |
| 5 | Switch cruise control to standby or switch off |
| 6 | RES button for resumption or loading of stored driving speed |
