System overview

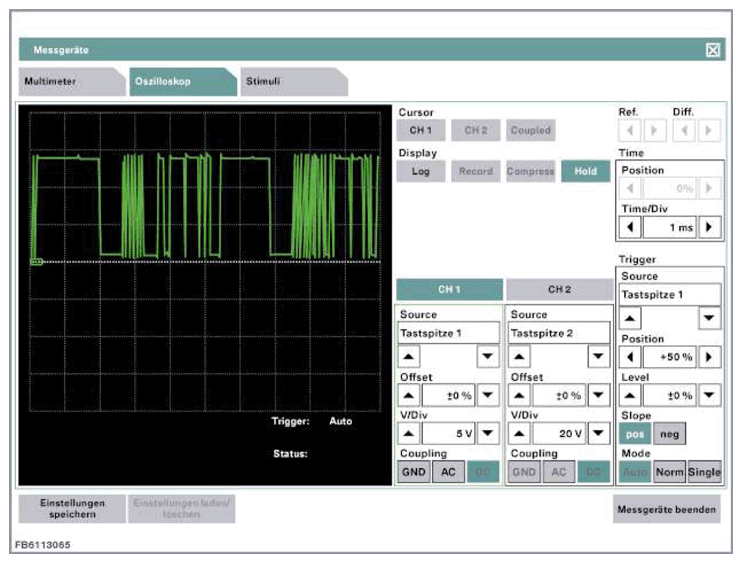

The following illustration shows the LED headlight system network using the example of I01.
| Item | Explanation |
|---|---|
| 1 | Left LED headlight (also called: low-beam headlight, left) with Frontal Light Electronics Left (FLEL), with servomotor for automatic headlight beam throw adjustment and fan |
| 2 | Right LED headlight (also called right low-beam headlight), with Frontal Light Electronics Right (FLER), with servomotor for automatic headlight beam throw adjustment and fan |
| 3 | Halogen high-beam headlight, right (lighting functions: High-beam headlight and indicator light) |
| 4 | Power distribution box Life module |
| 5 | Body Domain Controller |
| 6 | Operating facility for light |
| 7 | Ride height sensor, rear |
| 8 | Rain-light-solar-condensation sensor |
| 9 | Ride height sensor, front |
| 10 | Halogen high-beam headlight, left (lighting functions: High-beam headlight and indicator light) |
| 11 | Fuse box |
| 12 | CAN terminator |
| 13 | Ground connection |
