BDC Body Domain Controller

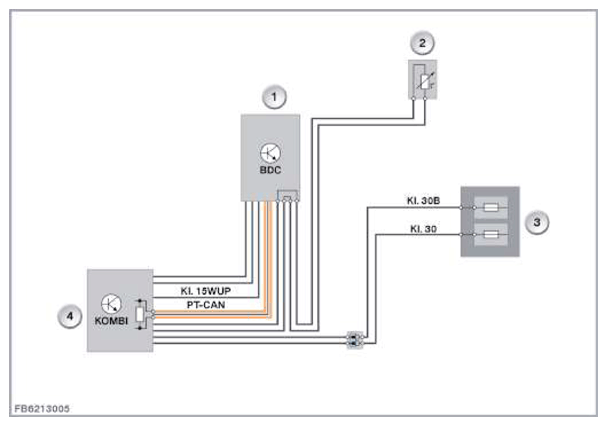

The Body Domain Controller supplies the instrument cluster with various required signals on the PT-CAN. The outside temperature sensor is connected to the Body Domain Controller. The lines are looped through. The following illustration shows the functional networking.
| Item | Explanation |
|---|---|
| 1 | Body Domain Controller (BDC) |
| 2 | Outside temperature sensor |
| 3 | Power distribution box Life module |
| 4 | Instrument panel (KOMBI) |
