Refuelling button

To introduce the refuelling, the refuelling button must first be pressed. The refuelling button is located on the A-pillar in the driver's side footwell.

The refuelling button is connected by means of a 4-pin plug connection.

The status of the button is evaluated by the hybrid pressure refuelling electronic control unit (TFE). The signal for the locator lighting (terminal 58g) is received by the button from the Body Domain Controller (BDC).

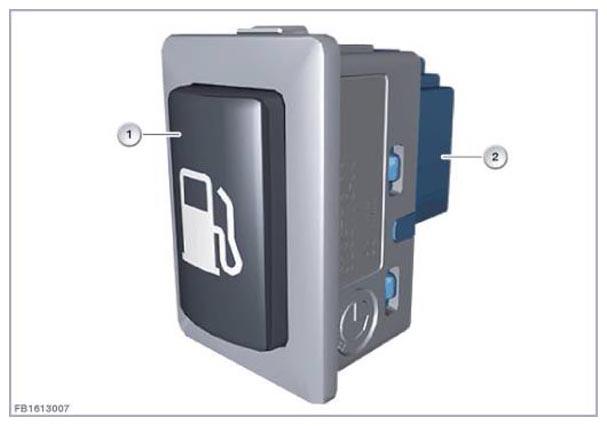

G11117346Courtesy of BMW OF NORTH AMERICA, INC.
Item Explanation
1 Refuelling button
2 4-pin plug connection
