High beam halogen headlight: Notes
Notice! The lighting functions of each side of the vehicle are partitioned to 2 headlights (low-beam headlight and halogen high-beam headlight).
Only the high beam halogen headlight is described in this service information.

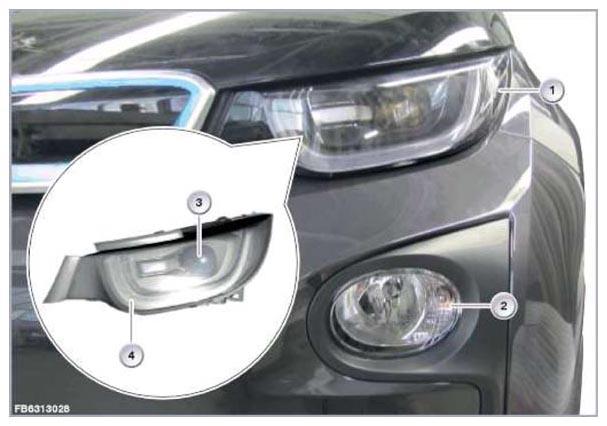

The following illustration shows the headlight using the example I01 (European version).
| Item | Explanation |
|---|---|
| 1 | Left low-beam headlight (shown version: LED headlight |
| 2 | Halogen headlight of the left high-beam headlight with turn indicator |
| 3 | Low-beam headlight (shown: LED headlight) |
| 4 | Fibre-optic conductor and light strip for the lighting function of the side lights and daytime driving lights |
