System overview

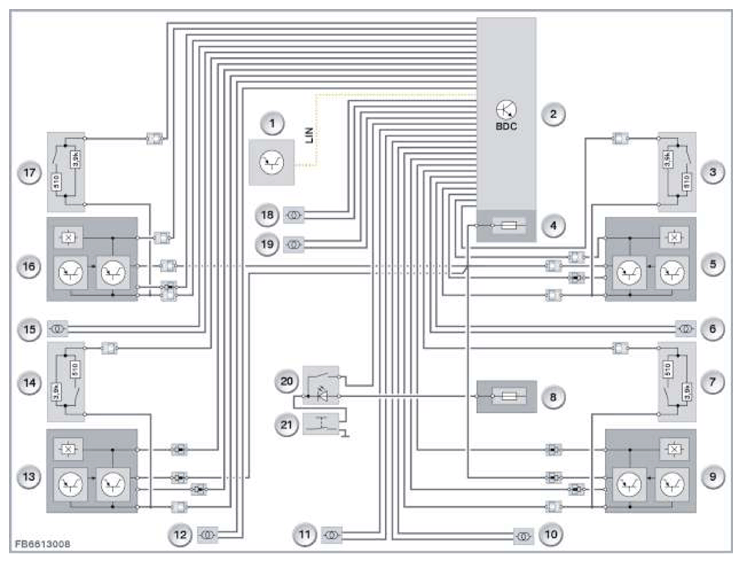

The following illustration shows the comfort access system network, using the example of the F15.
| Item | Explanation |
|---|---|
| 1 | Remote control receiver |
| 2 | Body Domain Controller (BDC) |
| 3 | Front passenger door lock |
| 4 | Fuse on the Body Domain Controller |
| 5 | Outside door handle electronics, passenger |
| 6 | Exterior aerial, passenger's side |
| 7 | Door lock, rear passenger's side |
| 8 | Power distribution box, right rear |
| 9 | Outside door handle electronics, rear passenger's side |
| 10 | Luggage compartment aerial, right |
| 11 | Luggage compartment aerial, left |
| 12 | Bumper aerial |
| 13 | Outside door handle electronics, rear driver's side |
| 14 | Door lock, rear driver's side |
| 15 | Exterior aerial, driver's side |
| 16 | Outside door handle electronics, driver |
| 17 | Door lock, driver |
| 18 | Interior aerial, center console, front |
| 19 | Interior aerial, center console, rear |
| 20 | Tailgate button on inside of tailgate |
| 21 | Tailgate/tailgate lock |
