12 14 550 Replacing control module (DME)

WARNING: This page does not describe the selected car, but rather 15 other vehicles, including the 2005 BMW 325xi, 2005 BMW 325i, 2005 BMW 325Ci, 2004 BMW 325xi, and 2004 BMW 325i. However, it is still accessible from the selected car via links, so may be relevant.

Follow instructions for removing and installing electronic control units, refer to 12 00... INSTRUCTIONS FOR REMOVING AND INSTALLING ELECTRONIC CONTROL UNITS .

Before replacing the control module, always follow the instructions listed below:

Code control unit, refer to 12 14 700 CODING CONTROL MODULE (DME / DDE) .
Program control unit, refer to 12 14 705 PROGRAMMING CONTROL UNIT (DME / DDE) .

CAUTION: It is absolutely essential to read out the fault memory with the MoDiC or the BMW DIS and to create a fault memory printout.

Turn off ignition.

Release screws (1).

Remove cover.

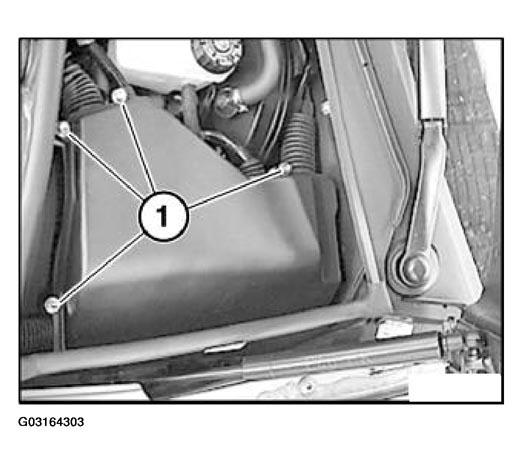

Fig 1: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Correctly install wiring harness with grommet in cover (water tightness).

Hook cover (3) into hinges of underside of electronics box (1). Make sure upper stop (2) is correctly installed above hinges on underside of electronics box.

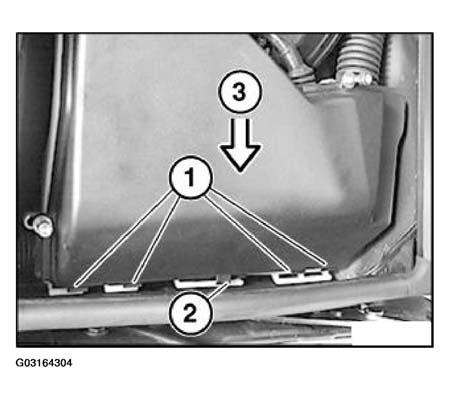

Fig 2: Hooking Cover Into Hinges Of Underside Of Electronics Box

Courtesy of BMW OF NORTH AMERICA, INC.

Assignment Of Electronics Box (With Automatic Transmission):

1 = Control unit, Digital Motor Electronics (DME).

2 = Control unit for automatic transmission.

Disconnect plug connections (1).

Remove control unit (2).

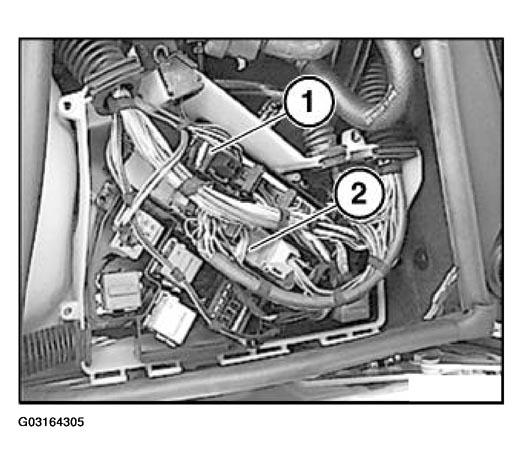

Fig 3: Removing Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 4: Identifying Control Unit (Digital Motor Electronics (DME) And Automatic Transmission)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Replacement:

Observe equipment no. and coding.

NOTE: Interrogate fault memory of DME control module. Check stored fault messages. Rectify faults. Then clear fault memory.
