84 11 520 Removing And Installing/Replacing Transceiver (Fixed Mounting)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2006 BMW M3, 2005 BMW M3, 2004 BMW M3, 2003 BMW M3, and 2002 BMW M3. However, it is still accessible from the selected car via links, so may be relevant.

Detach left trunk wheel arch trim in rear area. Refer to 51 47 151 REMOVING AND INSTALLING/REPLACING TRUNK WHEEL HOUSING TRIM, LEFT .

Loosen screws (1).

Pull out holder for transmit-receive unit (2) in direction of arrow and disconnect plug connections (3).

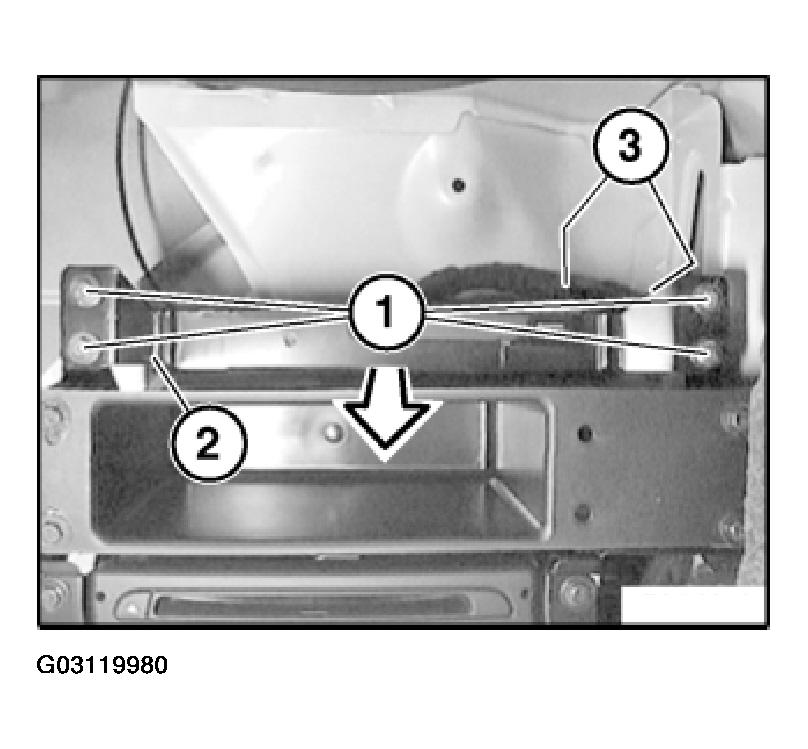

Fig 1: Pulling Out Holder For Transmit-Receive Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

Release screw (1).

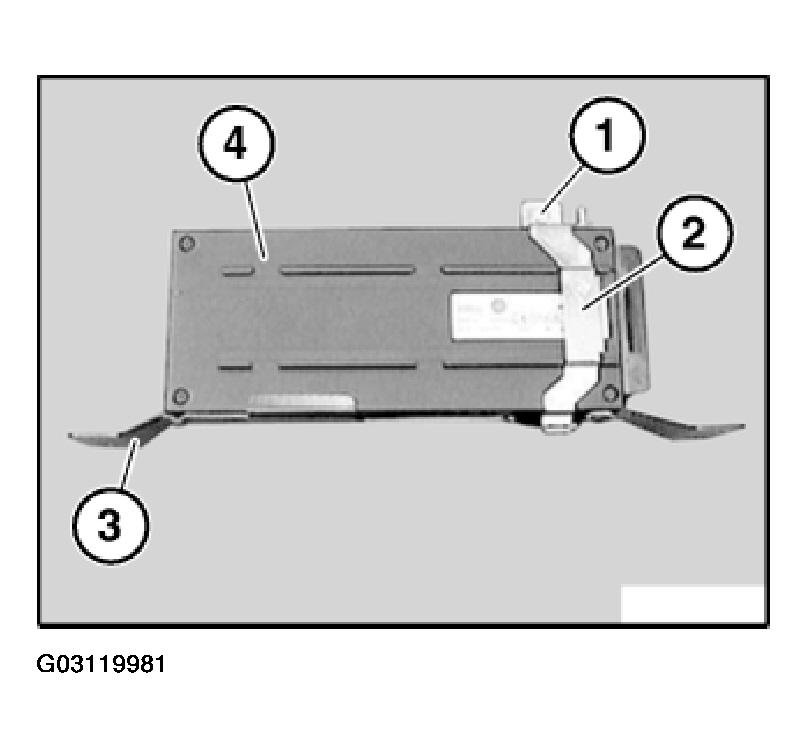

Fig 2: Removing Transmit-Receive Unit From Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Unhook mounting bracket (2) and remove.

Remove transmit-receive unit (4) from holder for transmit-receive unit (3).

Installation:

If necessary, replace sealing strip stuck to holder for transmit-receive unit (3)
