12 14 760 Removing and installing/replacing control unit (RDME)

Necessary preliminary tasks:

NOTE: Before disconnecting the battery cable, it must be ensured that the vehicle goes to sleep.

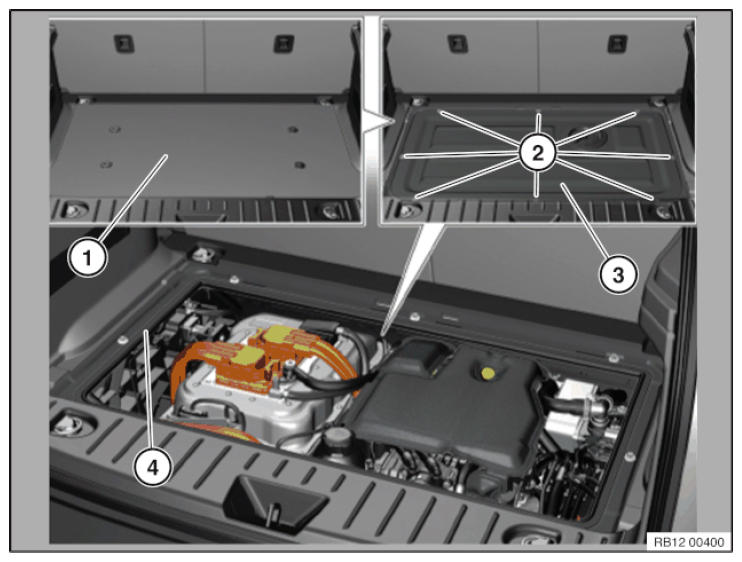

Fig 1: Identifying Floor Trim Panel, Service Cap, Screws And Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Remove luggage compartment floor trim panel (1).

Release screws (2) and remove service cap (3) towards top.

Tightening torque 51 47 04AZ .

Installation note:

Check the neoprene nuts of the screw connections (2) and gasket (4) for damage and replace if necessary.

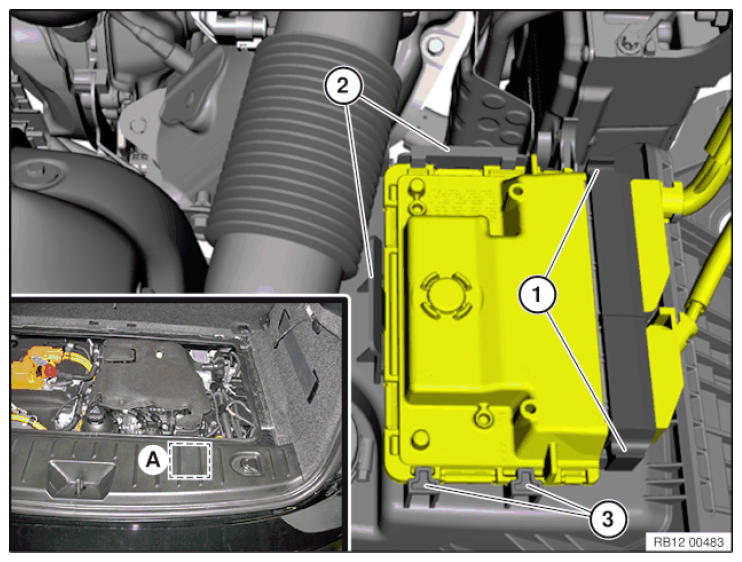

Fig 2: Identifying Plug Connections Locks And Guide Lugs

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Control unit (RDME) is positioned in marked area (A).

Unlock plug connections (1) and disconnect.

Press locks (2) outwards and feed out control unit (RDME).

Installation note:

Make sure control unit (RDME) is correctly fitted.

Control unit (RDME) must be situated under guide lugs (3).

Control unit (RDME) must be fully locked into locks (2).

Replacement:
