12 14 750 Removing and installing/replacing control unit (EDME)

Necessary preliminary tasks:

Detach the BATTERY CABLE NEGATIVE TERMINAL .

NOTE: Before disconnecting the battery cable, it must be ensured that the vehicle goes to sleep.

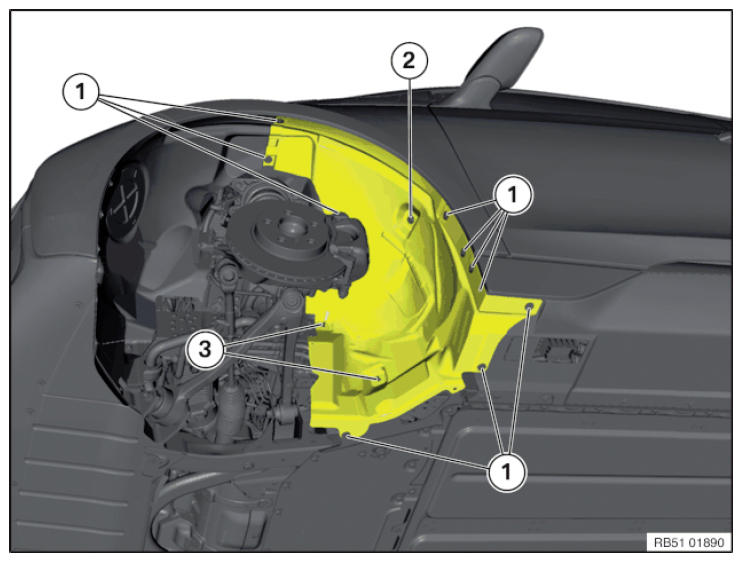

Fig 1: Identifying Wheel Arch Cover, Screws And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Slacken nut (2).

Release plastic nuts (3).

Feed out front wheel arch cover (rear part).

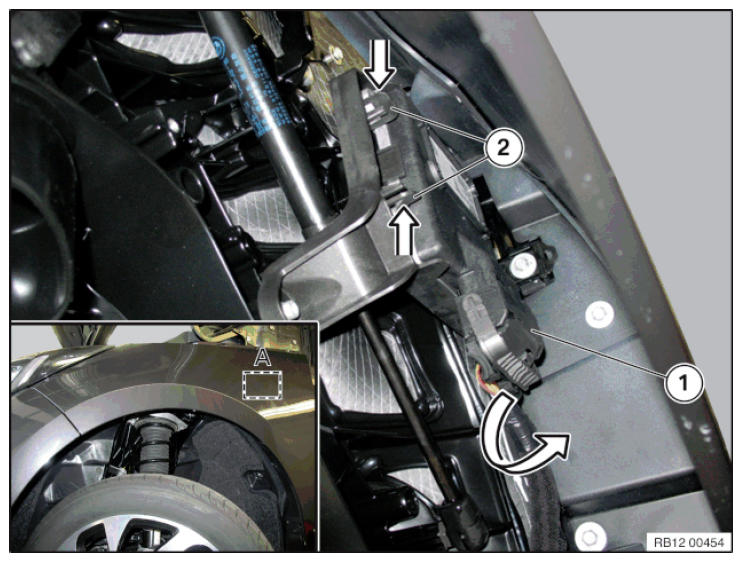

Fig 2: Pressing Control Unit (EDME) Locks

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The control unit (EDME) is positioned in the marked area (A).
Unfasten plug connection (1) and disconnect.
Press together the locks (2) and feed out control unit (EDME).

Installation note:

Make sure control unit (EDME) is correctly seated.

Control unit (EDME) must be situated under guide lugs (1).

Control unit (EDME) must be fully locked into locks (2).

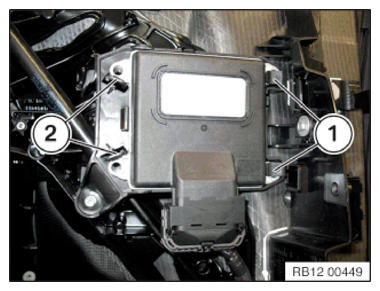

Fig 3: Identifying Guide Lugs And Locks

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/CODING .
