11 15 510 Measuring the internal engine pressure (W20)

Special tools required:

Necessary preliminary tasks:

Open oil filler cap (1).

Start engine and run at idle speed.

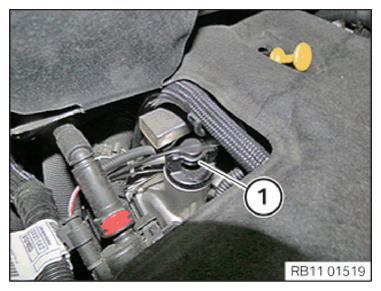

Fig 1: Identifying Oil Filler Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Screw special tool 2 406 729 in hand-tight.

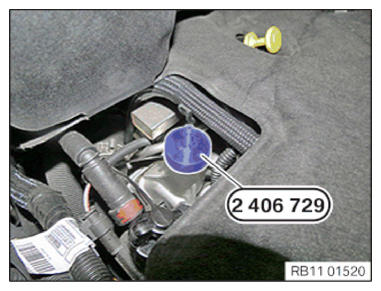

Fig 2: Screwing Special Tool (2 406 7329)

Courtesy of BMW OF NORTH AMERICA, INC.

Connect the pressure hose (1) with special tool 2 406 729 .

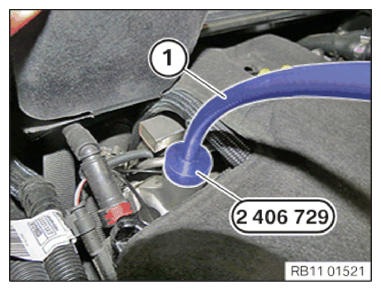

Fig 3: Connecting Pressure Hose With Special Tool (2 406 729)

Courtesy of BMW OF NORTH AMERICA, INC.

Connect pressure hose (1) with the fuel pressure sensor to the Integrated Measurement Interface Box (IMIB).

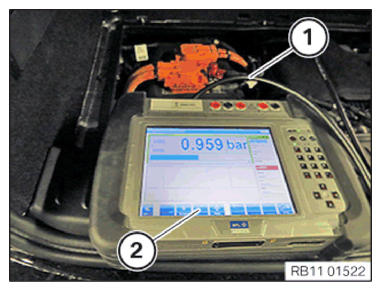

Fig 4: Connecting Pressure Hose With Fuel Pressure Sensor To Integrated Measurement Interface Box

Courtesy of BMW OF NORTH AMERICA, INC.

Follow diagnosis instruction.
