11 61 050 Removing and installing intake plenum (W20)

WARNING: High-voltage system - danger to life
Compliance with the following points is mandatory before beginning work:

Necessary preliminary tasks:

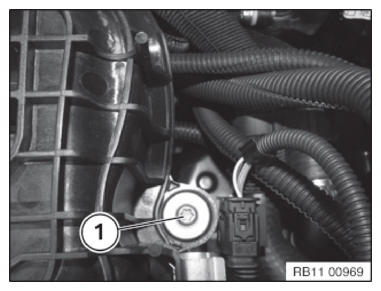

Release screws (1).

Tightening torque: 11 61 1AZ .

Fig 1: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

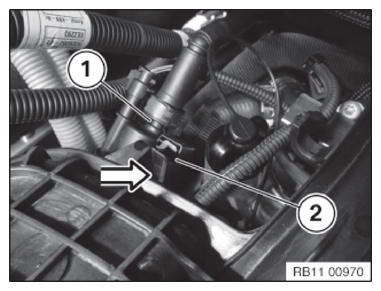

Release tank vent valve (1) from holder (2) in direction of arrow.

Fig 2: Releasing Tank Vent Valve From Holder

Courtesy of BMW OF NORTH AMERICA, INC.

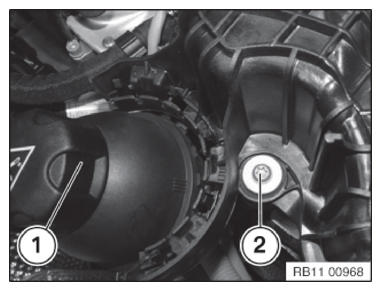

Unclip expansion tank (1) carefully from bracket at intake system.

Release screw (2).

Tightening torque: 11 61 3AZ .

Fig 3: Identifying Expansion Tank And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

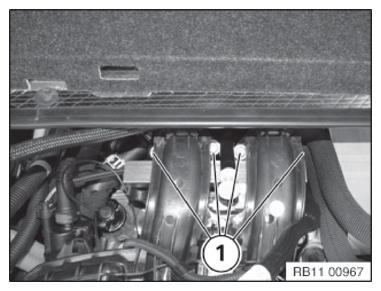

Release screw (1).

Tightening torque: 11 61 3AZ .

Fig 4: Identifying Screw

Courtesy of BMW OF NORTH AMERICA, INC.

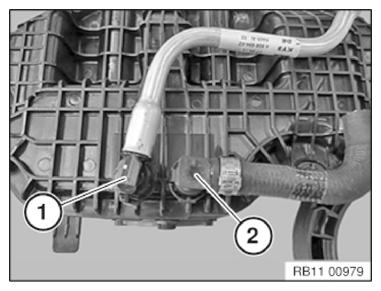

Unlock and pull off tank ventilation line at connecting element (1).

Unlock and pull off engine ventilation line at connecting element (2).

Illustration shows the removed intake plenum.

Fig 5: Identifying Tank Ventilation Line And Engine Ventilation Line Connecting Elements

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace all gaskets.

Assemble engine.
