11 24 571 Replacing all connecting rod bearing shells (W20)

Special tools required:

Necessary preliminary tasks:

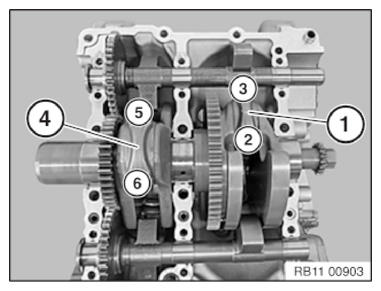

Release connecting rod bolts (2 and 3).

Remove connecting rod bearing cap (1).

Release connecting rod bolts (5 and 6).

Remove connecting rod bearing cap (4).

Fig 1: Identifying Connecting Rod Bearing Cap And Connecting Rod Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage to cylinder wall and to crankshaft.

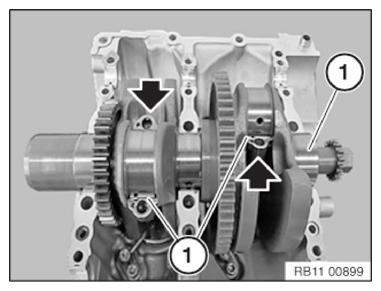

Gently release connecting rod from crankshaft.
Lift out crankshaft (1).

Fig 2: Locating Connecting Rods

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Pay attention to guide lugs during installation.

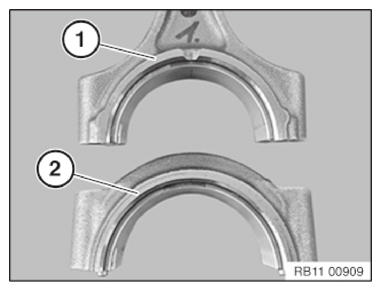

Insert conrod bearing shells (1 and 2).

Connecting rod (1) bearing shell color brown .

Connecting rod bearing cap (2) bearing shell color blue .

Fig 3: Identifying Connecting Rod And Bearing Cap

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten all connecting rod bolts with special tool 00 9 120.

Tightening torque 11 24 1AZ .

Fig 4: Identifying Connecting Rod Bearing Cap And Connecting Rod Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
