41 11 650 Removing And Installing/Replacing Vertical Strut (Range Extender) (Support For Bumper Panel Removed)

Read contents of BODY, GENERAL .

Necessary preliminary tasks:

• Remove COMPLETE EXHAUST SYSTEM .
• Remove INTAKE FILTER HOUSING .
• Remove ENGINE COMPARTMENT FAN .

Removal of the vertical strut

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) and remove exhaust system holder (2).

Tightening torque 18 20 1AZ .

Loosen screws (3).

Pull heat shield (4) out of clamps (5) and remove.

Tightening torque 18 30 6AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

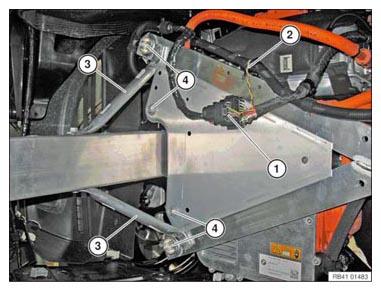

Unclip cable in area (1).

Unfasten screws (2).

Tightening torque 41 11 4AZ .

Turn connector housing (1) 45° and remove.

Unclip cable at marked areas.

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

Unclip high-voltage cables (1) (4x).

Unfasten screws (2).

Tightening torque 41 11 4AZ .

Remove vertical strut (3).

Installation of the vertical strut

The installation takes place in reverse order.

Tighten screws with tightening torque.
