61 61... Check contact angle of left or right windscreen wiper (series LI)
Special tools required:
- 61 6 100
A correctly adjusted contact angle of the wiper arms is important for the wiping quality. Consult the vehicle-specific repair instructions for adjustments

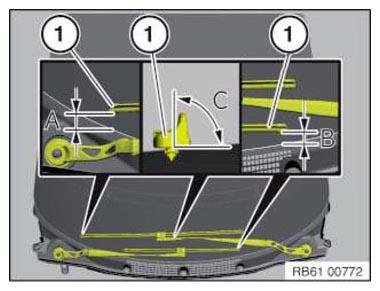

- A/B = Distance between cowl panel and wiper blade (1).NOTE: Measurement is carried out at the end (3) of the wiper blade.
- C= Contact angle between wiper blade center plane and windscreen
When using special tool 61 6 100, check the scale value according to the following table.
For right hand drive vehicles, change the preceding sign of the scale values.
- Left hand drive vehicle scale range 0 to -10
- Right hand drive vehicle scale range 0 to +10
| Model | Contact angle (C) on windscreen wiper arm | Scale value on the special tool (left hand drive vehicle) |
Setting dimension (A, B) on windscreen wiper arm | ||||
| Front passenger side | Driver's side | Front passenger side | Driver's side | Front passenger side | Driver's side | ||
| I 01 | 85.2 ° ±2 ° |
85.2 ° ±2 ° |
-5 ±3 |
-5 ±3 |
32 mm ±3 mm |
32 mm ±3 mm |
|
