61 31 544 Replacing roof switch cluster

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Release interior roof light (1) at clamps (2) and feed out of roof switch cluster (3).

Installation note:

Clips (2) must not be missing or damaged.

Make sure interior roof light (1) is correctly seated in roof switch cluster (3).

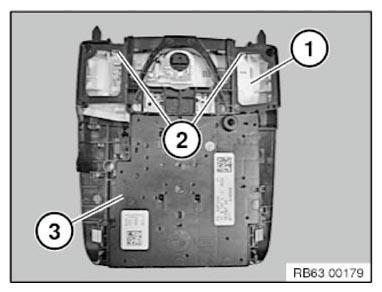

Fig 1: Identifying Interior Roof Light, Clamps And Roof Switch Cluster

Courtesy of BMW OF NORTH AMERICA, INC.
