61 31 492 Replacing level switch for windscreen washer system
Necessary preliminary tasks:

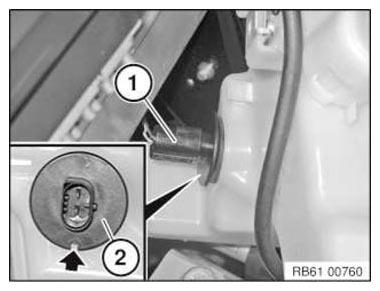

Unfasten plug connection (1) and disconnect.
Pull level switch (2) out of washer fluid reservoir.
Installation note:
Make sure level switch is in the correct position (anti-twist lock) in the washer fluid reservoir.
